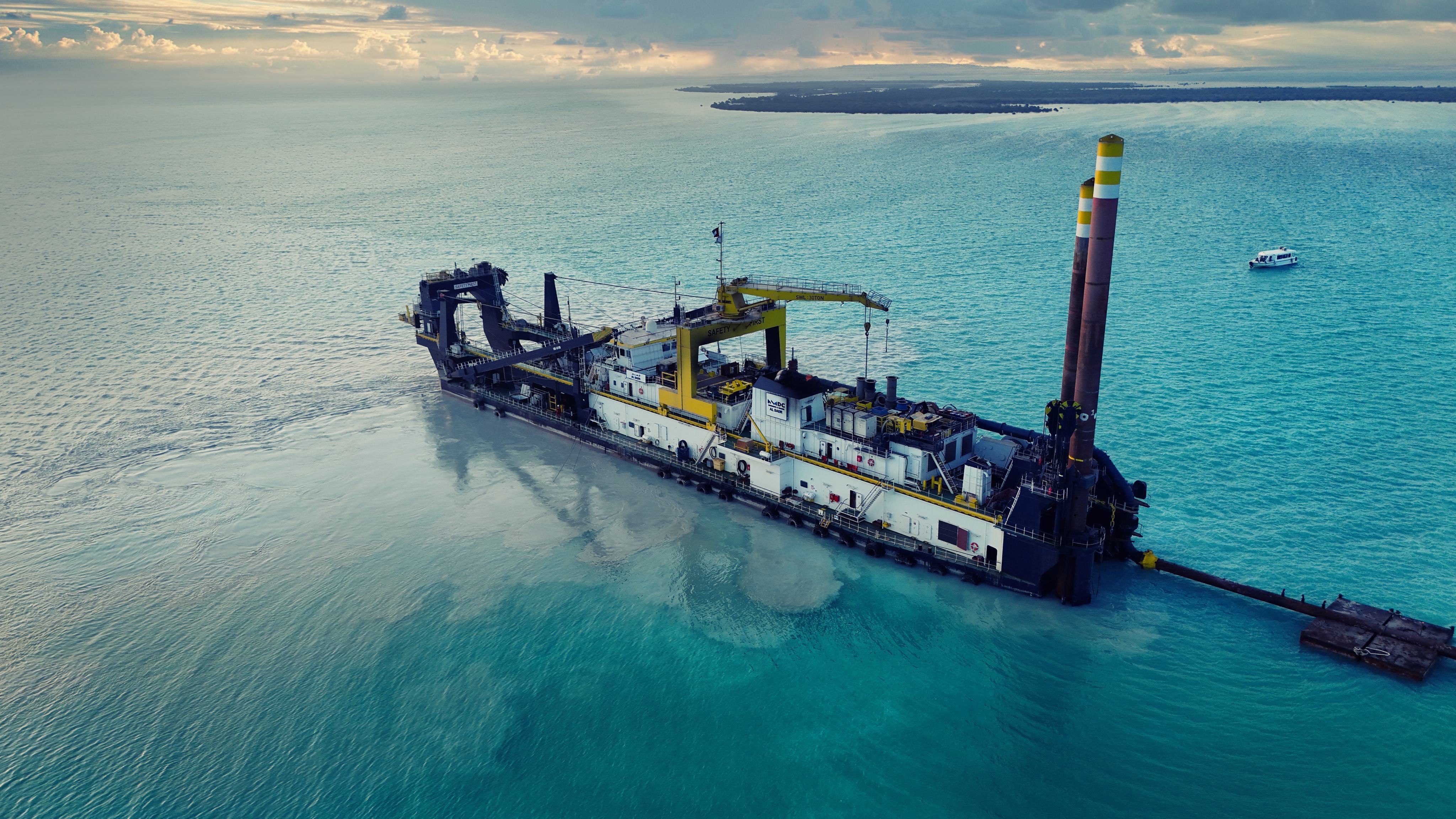

Al Sadr|Marine Vessels

Heavy Duty CSDDate of Manufacturing 1999

Specification

Classification Society -

Class Notation -

Registration -

Technical Details

Length Overall: 117.50 m
Length Over Pontoon: 97.30 m
Width Over Pontoon: 20.30 m
Depth: 6.00 m
Dredging Depth: 6.00 / 27.00 m
Diameter Suction Pipe: 900 mm
Diameter Discharge Pipe: 850 mm
Power Inboard Dredge Pump Engine: 2 x 4,400 KW
Power Main Alternator Engine: 3 x 3,750 KW
Power Auxillary / Harbour Engine's: 619 KW / 55 KW

Machinery

Power Cutter Motor / Cutter Type Rh Rotation

2,200 KW / Esco 6 Arm RH 52 D Spherilok HD Rock48 DS Spherilock LD Rock48 DS Helilok, sand / clay

Power Submersible Dredge Pump / Speed

2,200 KW @ Constant power 363-454 rpm

Submersible Dredge Pump Type & Speed

IHC single walled HR-MD 172-36-85 & 363/454 rpm

Dredge Pump Type & Speed

IHC double walled HR-HD 221-36-85 & 352 rpm

BV Registration Number

00427 R

View specification

Al Sadr
