Technical Details
- Length Overall
- 47.50 m
- Width
- 26.50 m
- Depth
- 8.55 m
- Dredging Depth
- 2.75 m
- Diameter Discharge Pipe
- 1.60 m
- Draghead
- 600 mm
- Dredge Pump
- 550 mm

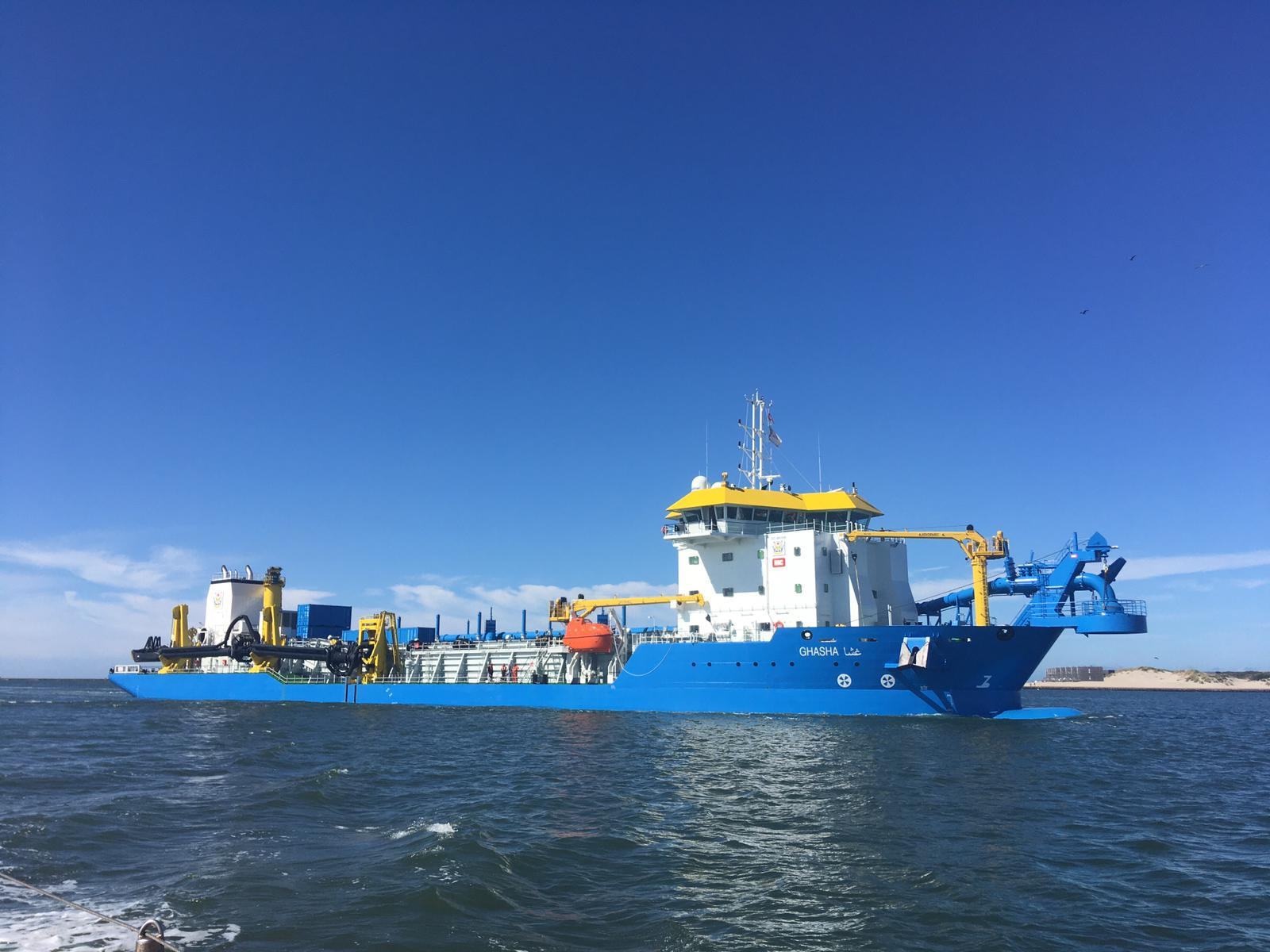

Ghasha|Trailing Suction Hopper Dredger
GhashaCutter Suction Dredger, Non-PropulsionDate of Manufacturing - 2020
Back
Specification
Classification Society -
Class Notation -
Registration -
Fuel & Water Capacity
Heavy Fuel Oil
276 KW / Esco V23
Marine Diesel Oil
IHC Conventional H. Pressure Pump 150-27.5-55 / 426 rpm
Technical Fresh Water
04882 R
Total Installed Power
Total Installed Power
9674 kW
Cranes
Main Crane
1 x Liebherr (Main 30T at 25m - Aux 6.5T at 34.5m)
Machinery
Main Engines
2 x Wartsila 8L32 (4240 kW each)
Main Generators
2 x Siemens (4278 kVA each)
Auxiliary Generator
1 x 780 kW - CAT C32
Emergency Generator
1 x 342 Kw - CAT C18
Safety System
IHC System
Propulsion System
Wartsila
